Automatic HDPE Large Oil Drum Extrusion Blow Molding Machine For Plastic Barrel Production

Nama merek:	ZQ
Nomor Model:	TCY 75
MOQ:	1 set
Rincian kemasan:	20'Wadah
Ketentuan Pembayaran:	H/A,D/P,T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Sertifikasi:

Kondisi:

Buatan:

Kompatibilitas material:

Cocok untuk PET, HDPE, PP, PVC dan termoplastik lainnya

Nomor Model:

IBM65D

Sistem pengendali:

Teknologi ACT

Berat mesin:

8,1 Ton

Tenaga kerja diperlukan:

1~2 operator

Asal:

Jiangsu Zhangjiagang

Aplikasi:

Botol plastik 5ml hingga 1000ml

Siklus kering:

Menyediakan kemampuan:

10 set/bulan

Menyoroti:

HDPE oil drum blow molding machine

automatic plastic barrel production machine

large extrusion blow molding machine

Deskripsi Produk

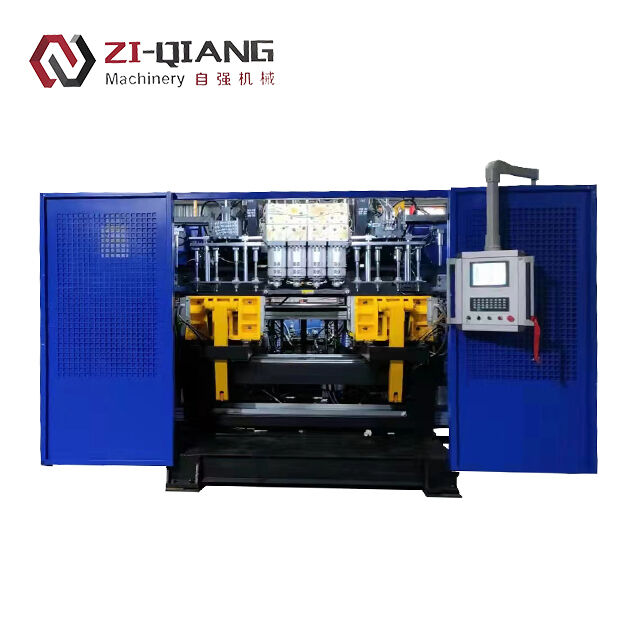

Automatic TCY 75 Extrusion Blow Molding Machine

Advanced automated extrusion blow molding system specifically engineered for high-volume production of HDPE plastic barrels and large oil drums. This industrial-grade machinery delivers precision manufacturing with exceptional efficiency and reliability.

Technical Advantages

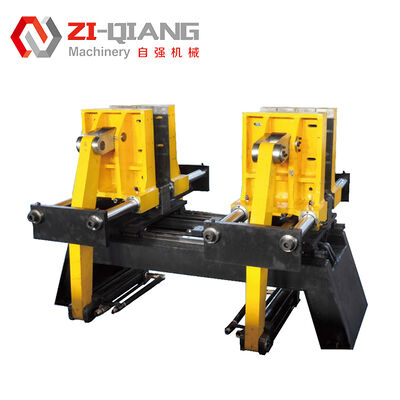

Place the mold clamping oil cylinder downwards to ensure the cleanliness of the tabletop products. The clamping force of the mold is evenly distributed.
The machine height is lowered to facilitate mold installation and operation.
Unique hydraulic servo system, reasonable pipeline layout, and improved operational efficiency.
Unique pressurization locking structure increases locking force and reduces energy consumption
Servo indexing system to improve indexing accuracy and equipment idle cycle time

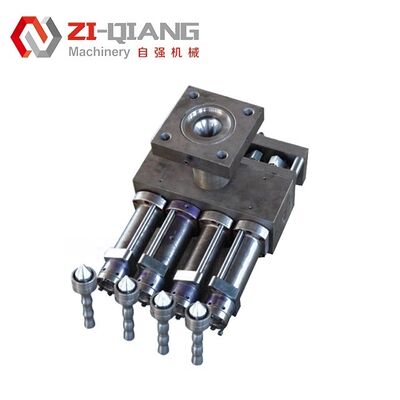

A special dual cylinder horizontal valve plate overlay injection system ensures smoother and faster injection and storage of materials
Demoulding adopts digital sensing technology to achieve unmanned and automatic operation
Added air pressure detection function, mold cooling water pressure, temperature detection function, abnormal will issue an alarm, reducing waste rate
Added auxiliary machine alarm and host communication function. When the host detects an auxiliary machine alarm, the host stops working.
Optional core rod blowing cold air function can shorten the cooling cycle of the product and solve the problem of core rod sticking
The rear end of the conveyor belt can be connected to visual inspection equipment to detect foreign objects on the bottle body and grooves at the bottom, achieving unmanned automatic operation.

Technical Specifications

Max. Product Volume	(L)	12
Theoretical Output	(PC/h)	800
Screw Diameter	(mm)	75
Screw L/D ratio	(L/D)	24-30
Screw drive power	(KW)	18.5-30
Screw heating capacity	(KW)	12-16
Output of HDPE	(kg/h)	90-105
Oil pump drive power	(KW)	7.5-11
Clamping force	(KN)	105-150
Platen size	(W×H) mm	500×550
Platen Opening Stroke	(mm)	220-570
Max. Die diameter	(mm)	200
Central distance of bi-die	(mm)	240-290
Max. Die Diameter(Bi-die)	(mm)	160
Central distance of three-die	(mm)	110-160
Max. Die Diameter(three-die)	(mm)	80
Central distance of four-die	(mm)	100-140
Max. Die Diameter(four-die)	(mm)	60
Average Energy Consumption	(kw/h)	4.5-7.0
Blowing pressure	(Mpa)	22.2
Air Consumption	(M³/MIN)	0.6
Cooling water pressure	(Mpa)	0.8
Water consumption	(L/MIN)	0.3
Size of machine	(L×W×H) /m	70
Weight of machine	(TON)	3.9×2.2×3.1

Company Introduction
